Price: ₹205.00
(as of Dec 29, 2025 13:14:50 UTC – Details)

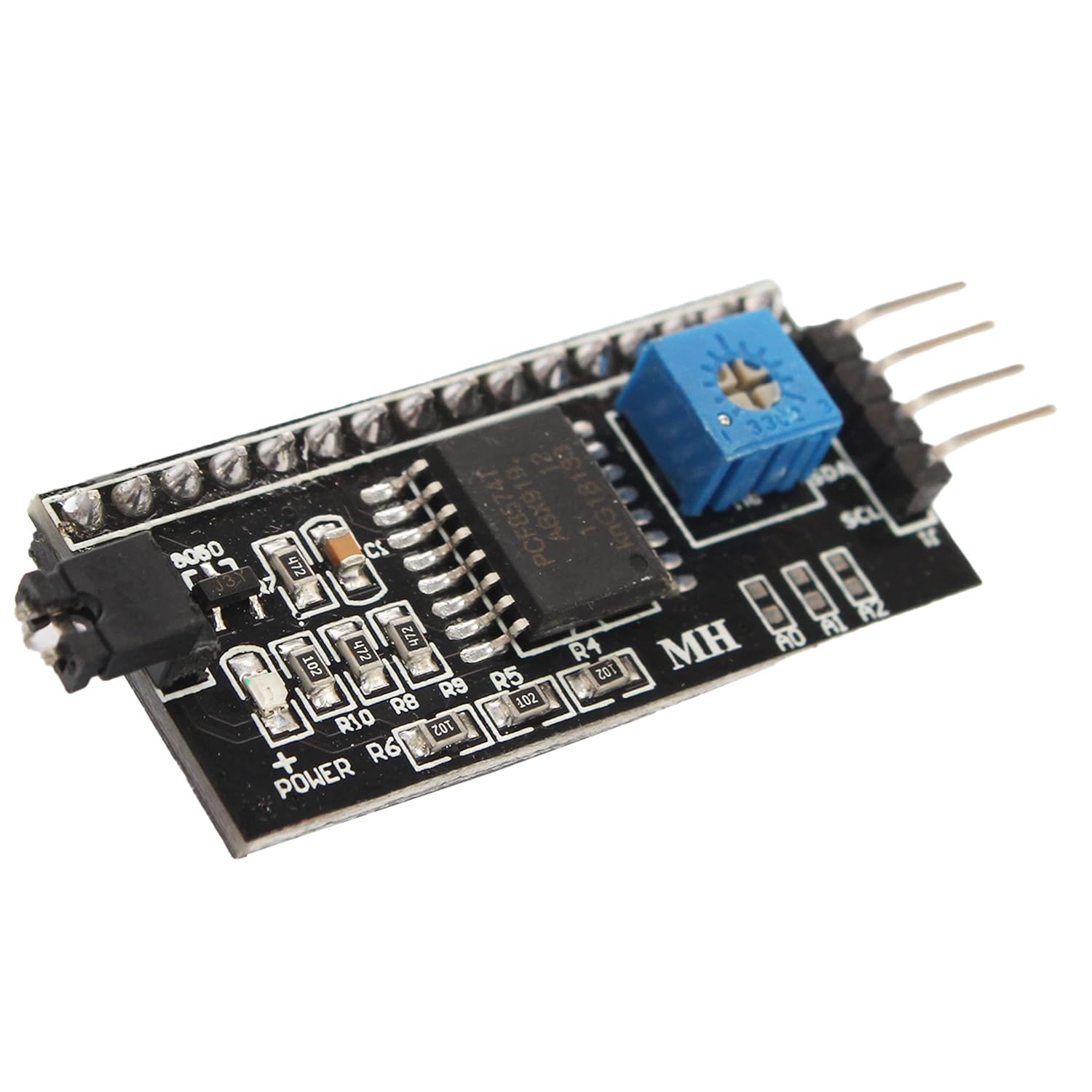

The 16×2 Alphanumeric LCD Display comes with an I2C/IIC adapter module. It can display up to 32 characters on a single screen, i.e. 16 characters per line. Each character is displayed in a 5×7 pixel matrix. It has a clear blue text on a white background. It can be easily interfaced with an I2C/IIC module. The module has an inbuilt PCF8574 I2C chip that converts I2C serial data to parallel data for the LCD display. It translates the data received from the I2C Bus into parallel data for LCD display. The module has a contrast adjustment pot on the underside of the display which can be used to adjust the screen to display text correctly. The single LED backlight can be dimmed easily with a resistor or PWM. The I2C device has a HEX address by which a microcontroller can communicate with it. The values on display on LCD can be either textual or numerical read by the sensors, such as temperature or pressure.
The alphanumeric display is a simple 16 characters by 2 line display. It has white text on a blue background. The I2C module makes connection and programming a display easy. It translates the data received from the I2C Bus into parallel data that is required for the LCD Display. The I2C interface module will let you realize data display with only 2 wires.
16×2 LCD display Alphanumeric display | Blue backlight | White Text | Backlight and contrast adjustment | Works with almost any microcontroller | Single LED backlight | Contrast control via a potentiometer I2C module Flexibility in connections | Reduces overall wirings | Can have 8 modules on a single I2C bus | Backlight can be enabled or disabled
Module dimension (LxWxH) : 80 x 36 x 15 mm Viewing area size (LxW) : 64.5 x 16 mm Display : 2 lines x 16 characters
This module makes connection and programming a display quick and easy. The Inter-integrated Circuit (I2C/IIC) is a two-wire short distance communication protocol. It can be used with multiple slave devices in the same two wires with one or more master controllers. The LCD Alphanumeric display is to support the I2C. It is used to read or write data.
Alphanumeric display Number of rows : 2 Number of characters : 16 Character colour : White Backlight : Blue Input Voltage (V) : 5 I2C module Operating Voltage : 5V Chip : PCF8574 I2C chip Compatibility : 16×2 LCD Wires required : 2
