Price: ₹6,299.00
(as of Apr 14, 2026 16:07:17 UTC – Details)
The 7 Inch LCD Touch Display With Driver Board Kit For Raspberry Pi gives users the ability to create an all-in-one, integrated projects such as tablets, infotainment systems, and embedded projects. The 800×480 physical resolution (resolution range can be adjusted between 640 x 480 to 1600 x 1200) display connects via an adapter board which handles power and signal conversion. Only two connections to the Pi are required; power from the Pi’s GPIO port and a ribbon cable that connects to the DSI port present on all Raspberry Pi’s. Touchscreen drivers with support for 10-finger touch and an on-screen keyboard will be integrated into the latest Raspbian OS for full functionality without a physical keyboard or mouse.
Specification:
Screen Diagonal: 7.0 inch
Active Area: 154.08(W) × 85.92(H) mm
Resolution: 800 x 480
Dot Pitch: 0.0642(W) × 0.1790(H) mm
Pixel Arrangement: R.G.B. Vertical Stripe
Viewing angle: 140/120
Display Mode: Normally White
Contrast Ratio: 500:1
Brightness: 250 Units
Physical Size: 164.9(W) ×100.0(H) ×5.7(D) mm
Electrical Interface: Digital
Backlight Panel: LED
Surface Treatment: Anti-Glare
Operating Voltage: 5V DC
Rated Power: 6-7W
Signal Input Source: 1 HDMI only
System Production: PAL/NTSC

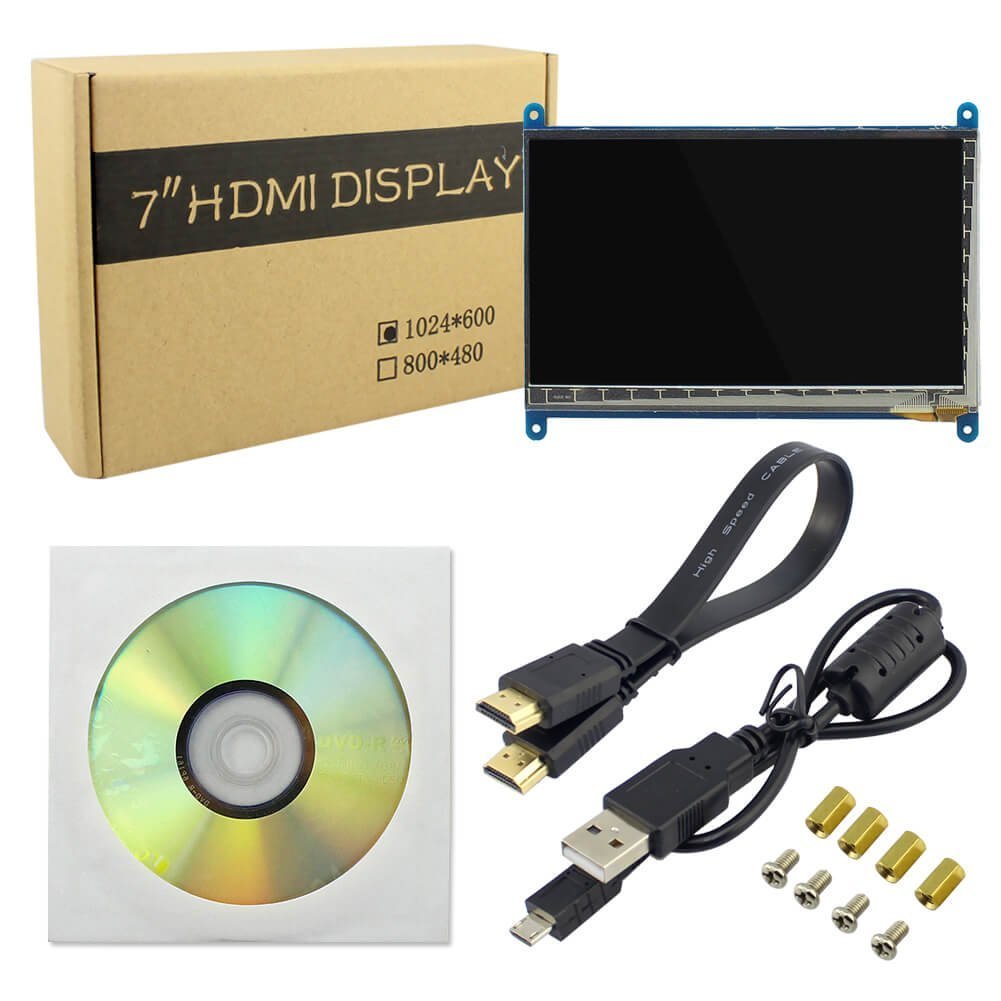

Package Included:
1 x 7 inch LCD display
1 x USB cable for the Touch Screen
1 x HDMI to HDMI cable
The function of plug and play support
5V supports DC voltage input, and can also be powered by USB or mobile power supply.
LCD with Touch Screen for Raspberry Pi B+/2B / 4B Raspberry Pi 3
