Price: ₹19,371.30
(as of Sep 04, 2026 20:14:51 UTC – Details)

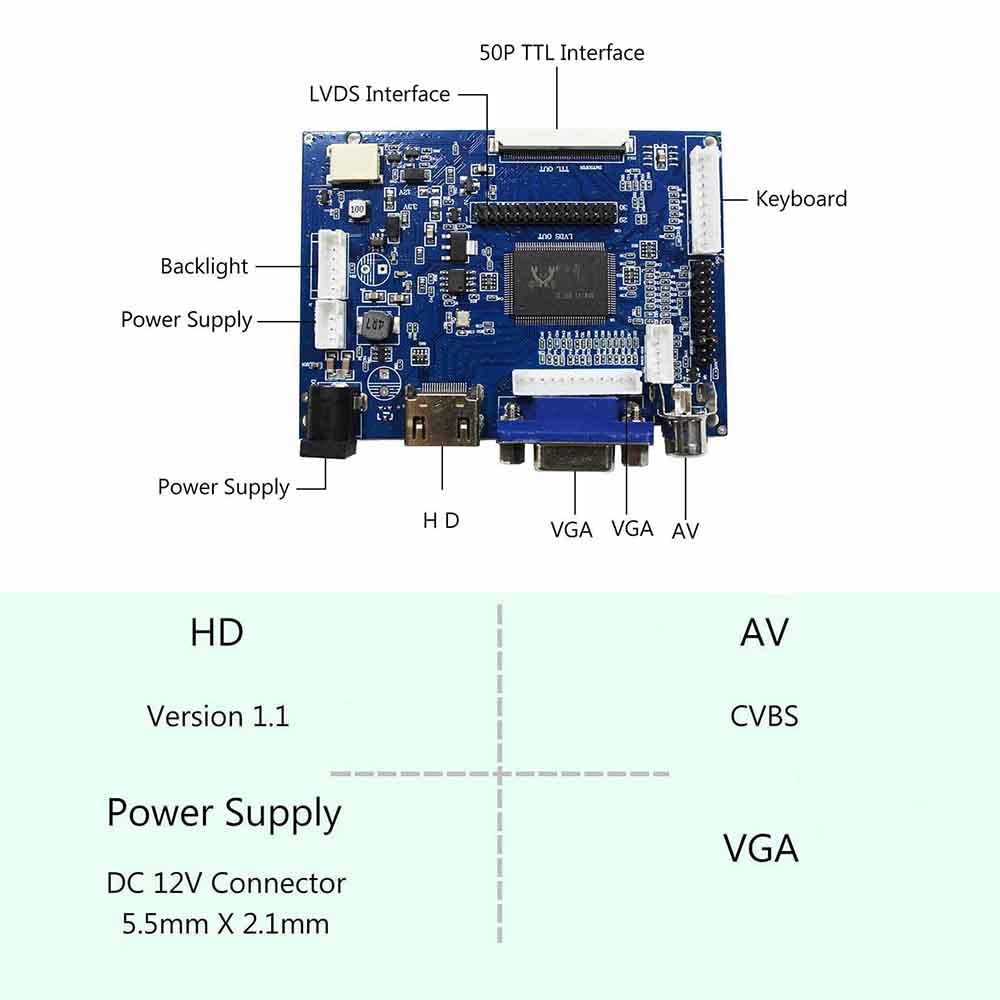

LCD Controller Board:
HD-MI VGA 2AV LCD Board Work for LVDS Interface LCD Screen
50Pin TTL Connector for 7inch~10.1inch LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI VGA AV1 AV2
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size:91mm x 66mm x 12mm
7″ N070ICG-LD1 1280X800 LCD Screen:
Display Mode HS-IPS, Normally Black, Transmissive
Resolution 1280RGB)×800
Outline Size 161 ×107×4.5 (H×V×D)
Display Area 149.76 × 93.6 (H×V)
Brightness 400 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 8-bit) , Connector , 39 pins
Backlight LED
Input Voltage 3.3V (Typ.)
Packing list :
1× HD-MI VGA+2AV LCD Controller Board VS-TY2662-V1
1× 7inch N070ICG-LD1 1280X800 LCD Screen
1× LVDS Cable
1× Keyboard With Cable
7″ N070ICG-LD1 1280X800 LCD Screen: Resolution 1280RGB)×800 Outline Size 161 ×107×4.5 (H×V×D) Display Area 149.76 × 93.6 (H×V) Brightness 400 cd/m² (Typ.) Contrast Ratio 800:1 (Typ.) (TM)
Display Mode HS-IPS, Normally Black, Transmissive. Signal Interface LVDS (1 ch, 8-bit) , Connector , 39 pins.
HD-MI VGA 2AV LCD Board Work for LVDS Interface LCD Screen, 50Pin TTL Connector for 7inch~10.1inch LCD Screen
Recommend Power Adapter Spec: Input Power Adapter:12Vdc More than 2A. (VSDISPLAY Power Adapter, AC 100-240V Input to 12V DC,2A Output ,Power Supply, US Plug , Fit SC24W-1202000U, Fit for All Types of VSDISPLAY LCD Controller Board) Come In Standby Model When Not Input Signal. Standby Model <1W
Packing list : 1× HD-MI VGA+2AV LCD Controller Board VS-TY2662-V1 1× 7inch N070ICG-LD1 1280X800 LCD Screen 1× LVDS Cable 1× Keyboard With Cable(Help to notice , there is no power adpter in the packing list.)
